3.5mm Stereo to RCA Red White Audio Over Cat5 Cat5e Cat6, CAT5e/CAT6 Stereo RCA Extender, Stereo to RCA Audio Extender, RCA to Stereo Ethernet Extender.

Applications
Stereo Extender Application
Stereo Audio Extender

Features

* Perfect and cost-effective audio signal extension solution for transmitting composite audio signal and power over long distance using low-cost CAT-5, CAT-5e or CAT-6 network cable.

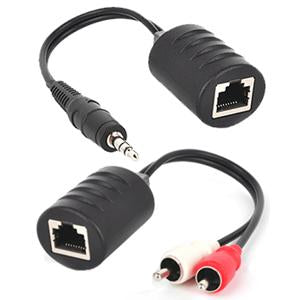

* Featured with 2 RCA phono jacks on one end with 3.5mm stereo mini plug on the other end.
* UTP cables are easier to install and more flexible than other audio cables.
* Maximum signal transmission distance up to 250 feet.
* Twisted pair network cabling provides added protection against outside interference and increases overall signal transmission distances.
* Audio sonic quality will be retained all the way the same as the original audio input.
* No signal loss and no degradation after the long cable run.
* Passive circuitry with self bus-powered so no external power supply needed for the operation in both transmitter unit and receiver unit.
* Fully plug and play.
* Supports both stereo and mono audio.

Specifications

* Audio Connectors: 3.5mm Stereo mini x 1 + RCA x 2
* RJ45 Connectors: 2 ( 1 for transmitter and 1 for receiver unit)
* Max Transmission Distance: 250 feet
* Bandwidth: 10 Hz to 50 kHz +/-3 dB
* Operating Temperature: -10C ~ +50C
* Environment Humidity: 0 ~ 95%
* Wire Type: UTP Category 5, 5e, or 6
* Operating Temperature: -10°C to 70°C
* Dimension: 0.5"(L)x0.5"(W) x1"(D)

Package Content

* Stereo audio transmitter module x 1
* Stereo audio receiver module x 1
